Machines In Stock

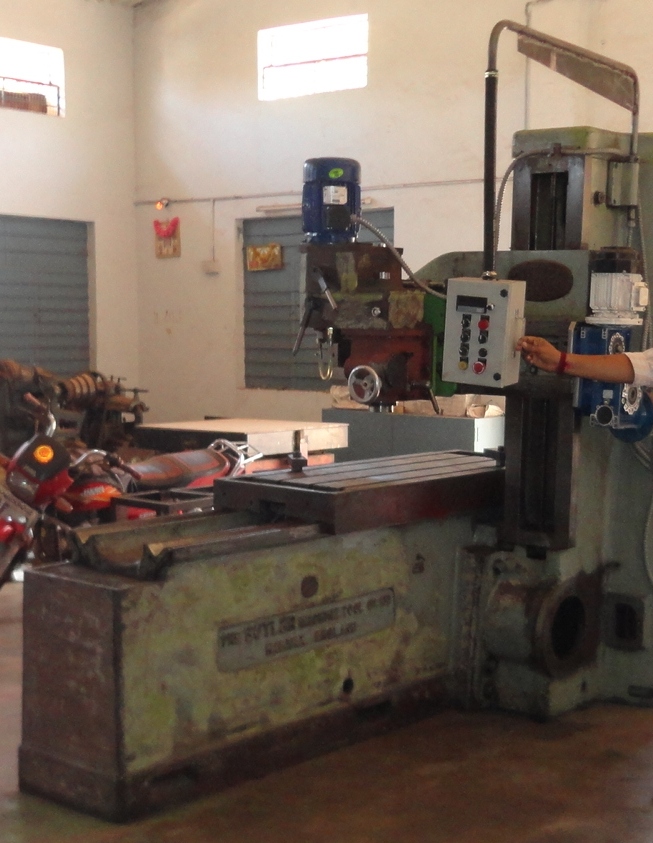

SHARDA MAKE PLANER CONVERTED TO PLANO MILLER

With ram head

We have converted Plano miller with 2 heads mounted: (a) 10 HP milling head with ISO-50 spindle, 6 spindle speeds, 100 mm quill movement, capable of mounting Ø300 mm cutter for heavy material removal & (b) Ram type milling head, MHCL-5, having 350 mm self-powered ram feed for deep hole drilling, boring etc, apart from milling. The machine is retrofitted with a common VFD based, 4 axes feed control system (table, cross, vertical & also ram up and down movements). Please see the attached photograph. Specs of the converted Plano milling machine is as mentioned here below:

Base 5500 mm long x790 mm wide
Table (including end trays) 4000 mm x 1,000 mm wide
T slots 5 numbers, 3,700 mm long
Admit between columns 1,500 mm (plus)
Max. height under the cross rail 1,500 mm
Table Guide Both V
Make of the Planer Sharda
Milling head 10 HP, ISO-50, 6 spindle speeds, 100 mm quill, Ø300 mm cutter
Axes feed Common VFD based 3 axes feed system
Table drive Motor 5 HP
Cross feed motor 2 HP
Vertical feed motor 3 HP
Weight Approximately 13 tons
Expected date of completion By 31.1.2013

Complete machine is offered at a price of INR 18,00,000/-, ex-our works, Bangalore.

The customer has a choice to retain only one milling head, we have no objection to remove the second milling head and reduce the price suitably. The customer will be provided additional accessories like mechanical tilting back plate (for tilting the milling head ±45?) or right angle attachment (for machining all the 4 sides of a rectangular plate), at an additional cost.









Flange Facer

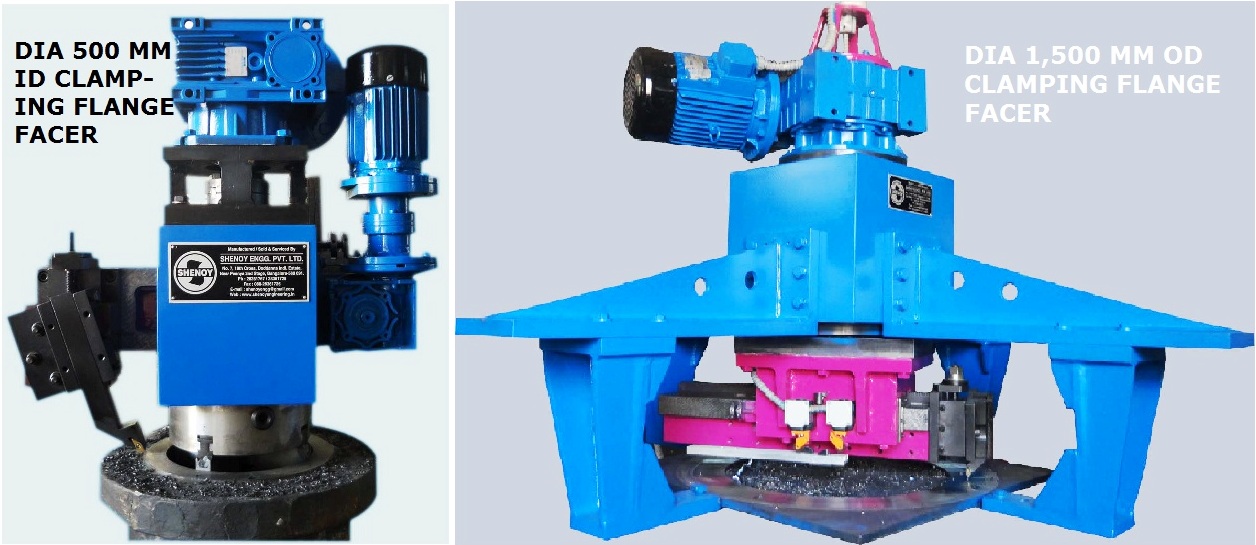

We have 2 flange facers in stock for sale. First flange facer is a manual ID clamping type for maximum facing range of dia 550 mm. Price: Rs 3.6 lacs, ex-our works, Bangalore. The second flange facer is manual OD clamping type for maximum facing range of dia 1,500 mm. Price Rs 9.9 lacs, ex-our works, Bangalore.
